BALL::VIEW::SnapshotVisualisationDialog Class Reference
[QT Dialogs]

#include <BALL/VIEW/DIALOGS/snapShotVisualisation.h>

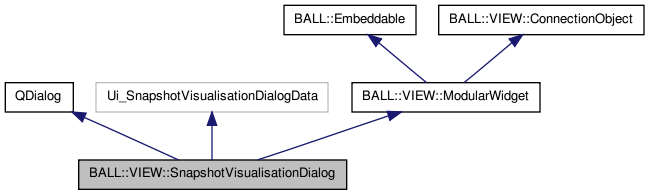

Inheritance diagram for BALL::VIEW::SnapshotVisualisationDialog:

[legend]

List of all members.

Public Slots
void	show ()
virtual void	firstSnapshotClicked ()
	Function to select the analogous Snapshot.
virtual void	oneForwardClicked ()
	Function to select the analogous Snapshot.
virtual void	oneBackwardClicked ()
	Function to select the analogous Snapshot.
virtual void	tenForwardClicked ()
	Function to select the analogous Snapshot.
virtual void	tenBackwardClicked ()
	Function to select the analogous Snapshot.
virtual void	hundredForwardClicked ()
	Function to select the analogous Snapshot.
virtual void	hundredBackwardClicked ()
	Function to select the analogous Snapshot.
virtual void	lastSnapshotClicked ()
	Function to select the analogous Snapshot.
virtual void	animateClicked ()
	Function to select the analogous Snapshot.
virtual void	snapShotInputTest ()
	test wether input in line edits startSnapshot or endSnapshot are valid
virtual void	sliderMovedToPos ()
virtual void	animationSpeedChanged ()
virtual void	checkNoLoop ()
virtual void	checkLoop ()
virtual void	checkRock ()
void	cancelPressed ()
Public Member Functions
	SnapshotVisualisationDialog (QWidget *parent=0, const char *name="SnapshotVisualisationDialog")
	Constructor.
	~SnapshotVisualisationDialog ()
	Destructor.
void	setSnapShotManager (SnapShotManager *snapshot_manager)
	This function sets the SnapShotManager.
const SnapShotManager *	getSnapShotManager ()
	This function gets the SnapShotManager.
Size	getStartSnapshot () const
Size	getEndSnapshot () const
Protected Slots
void	sliderDragStarted_ ()
void	sliderDragEnded_ ()
Protected Member Functions
void	stop_ ()
virtual void	closeEvent (QCloseEvent *)
void	update_ ()
void	forward (Size nr)
void	backward (Size nr)
Protected Attributes
MainControl *	main_control_
QString	tmp_
SnapShotManager *	snap_shot_manager_
bool	error_
bool	cancel_
bool	animation_running_
bool	drag_

---

Detailed Description

Dialog to visualise SnapShot instances

See also:

SnapShotManager

SnapShot

Definition at line 28 of file snapShotVisualisation.h.

---

Constructor & Destructor Documentation

BALL::VIEW::SnapshotVisualisationDialog::SnapshotVisualisationDialog	(	QWidget *	parent = 0,
		const char *	name = "SnapshotVisualisationDialog"
	)

Constructor.

BALL::VIEW::SnapshotVisualisationDialog::~SnapshotVisualisationDialog

(

)

Destructor.

---

Member Function Documentation

virtual void BALL::VIEW::SnapshotVisualisationDialog::animateClicked

(

)

[virtual, slot]

Function to select the analogous Snapshot.

virtual void BALL::VIEW::SnapshotVisualisationDialog::animationSpeedChanged

(

)

[virtual, slot]

void BALL::VIEW::SnapshotVisualisationDialog::backward

(

Size

nr

)

[protected]

void BALL::VIEW::SnapshotVisualisationDialog::cancelPressed

(

)

[slot]

virtual void BALL::VIEW::SnapshotVisualisationDialog::checkLoop

(

)

[virtual, slot]

virtual void BALL::VIEW::SnapshotVisualisationDialog::checkNoLoop

(

)

[virtual, slot]

virtual void BALL::VIEW::SnapshotVisualisationDialog::checkRock

(

)

[virtual, slot]

virtual void BALL::VIEW::SnapshotVisualisationDialog::closeEvent

(

QCloseEvent *

)

[protected, virtual]

virtual void BALL::VIEW::SnapshotVisualisationDialog::firstSnapshotClicked

(

)

[virtual, slot]

Function to select the analogous Snapshot.

void BALL::VIEW::SnapshotVisualisationDialog::forward

(

Size

nr

)

[protected]

Size BALL::VIEW::SnapshotVisualisationDialog::getEndSnapshot

(

)

const

const SnapShotManager* BALL::VIEW::SnapshotVisualisationDialog::getSnapShotManager

(

)

[inline]

This function gets the SnapShotManager.

Definition at line 49 of file snapShotVisualisation.h.

Size BALL::VIEW::SnapshotVisualisationDialog::getStartSnapshot

(

)

const

virtual void BALL::VIEW::SnapshotVisualisationDialog::hundredBackwardClicked

(

)

[virtual, slot]

Function to select the analogous Snapshot.

virtual void BALL::VIEW::SnapshotVisualisationDialog::hundredForwardClicked

(

)

[virtual, slot]

Function to select the analogous Snapshot.

virtual void BALL::VIEW::SnapshotVisualisationDialog::lastSnapshotClicked

(

)

[virtual, slot]

Function to select the analogous Snapshot.

virtual void BALL::VIEW::SnapshotVisualisationDialog::oneBackwardClicked

(

)

[virtual, slot]

Function to select the analogous Snapshot.

virtual void BALL::VIEW::SnapshotVisualisationDialog::oneForwardClicked

(

)

[virtual, slot]

Function to select the analogous Snapshot.

void BALL::VIEW::SnapshotVisualisationDialog::setSnapShotManager

(

SnapShotManager *

snapshot_manager

)

This function sets the SnapShotManager.

void BALL::VIEW::SnapshotVisualisationDialog::show

(

)

[slot]

void BALL::VIEW::SnapshotVisualisationDialog::sliderDragEnded_

(

)

[protected, slot]

void BALL::VIEW::SnapshotVisualisationDialog::sliderDragStarted_

(

)

[protected, slot]

virtual void BALL::VIEW::SnapshotVisualisationDialog::sliderMovedToPos

(

)

[virtual, slot]

virtual void BALL::VIEW::SnapshotVisualisationDialog::snapShotInputTest

(

)

[virtual, slot]

test wether input in line edits startSnapshot or endSnapshot are valid

void BALL::VIEW::SnapshotVisualisationDialog::stop_

(

)

[protected]

virtual void BALL::VIEW::SnapshotVisualisationDialog::tenBackwardClicked

(

)

[virtual, slot]

Function to select the analogous Snapshot.

virtual void BALL::VIEW::SnapshotVisualisationDialog::tenForwardClicked

(

)

[virtual, slot]

Function to select the analogous Snapshot.

void BALL::VIEW::SnapshotVisualisationDialog::update_

(

)

[protected]

---

Member Data Documentation

bool BALL::VIEW::SnapshotVisualisationDialog::animation_running_ [protected]

Definition at line 128 of file snapShotVisualisation.h.

bool BALL::VIEW::SnapshotVisualisationDialog::cancel_ [protected]

Definition at line 127 of file snapShotVisualisation.h.

bool BALL::VIEW::SnapshotVisualisationDialog::drag_ [protected]

Definition at line 129 of file snapShotVisualisation.h.

bool BALL::VIEW::SnapshotVisualisationDialog::error_ [protected]

Definition at line 126 of file snapShotVisualisation.h.

MainControl* BALL::VIEW::SnapshotVisualisationDialog::main_control_ [protected]

Definition at line 123 of file snapShotVisualisation.h.

SnapShotManager* BALL::VIEW::SnapshotVisualisationDialog::snap_shot_manager_ [protected]

Definition at line 125 of file snapShotVisualisation.h.

QString BALL::VIEW::SnapshotVisualisationDialog::tmp_ [protected]

Definition at line 124 of file snapShotVisualisation.h.
