BALL::QSAR::ClassificationModel Class Reference

#include <BALL/QSAR/classificationModel.h>

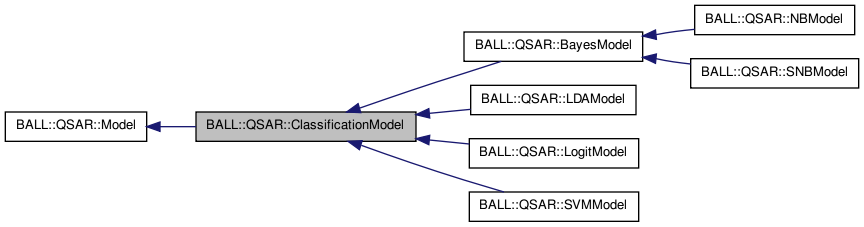

Inheritance diagram for BALL::QSAR::ClassificationModel:
Inheritance graph
[legend]

List of all members.

Public Member Functions

Constructors and Destructors

 ClassificationModel (const QSARData &q)
 ~ClassificationModel ()
virtual void operator= (ClassificationModel &m)

Protected Member Functions

Input and Output. The following methods can be used to implement the functions saveToFile() and readFromFile() in final classes derived from this base-class

void readClassInformationFromFile (std::ifstream &input, int no_classes)
void saveClassInformationToFile (std::ofstream &out)

Friends

class ClassificationValidation

Attributes



ClassificationValidationvalidation
std::vector< int > labels_
std::vector< int > getClassLabels ()

Accessors



std::vector< int > no_substances_
void readLabels ()

Feature discretization function



void(ClassificationModel::* discretizeFeatures )(uint bins, BALL::Matrix< double > &discretization_information)
void(ClassificationModel::* discretizeTestDataFeatures )(Vector< double > &compound, uint bins, const BALL::Matrix< double > &discretization_information)
void equalSpaceDiscretization (uint bins, BALL::Matrix< double > &discretization_information)
void equalSpaceDiscretizationTestData (Vector< double > &compound, uint bins, const BALL::Matrix< double > &discretization_information)

Detailed Description

Definition at line 46 of file classificationModel.h.


Constructor & Destructor Documentation

BALL::QSAR::ClassificationModel::ClassificationModel ( const QSARData q  )

constructur,

Parameters:
q QSAR-wrapper object, from which the data for this model should be taken
BALL::QSAR::ClassificationModel::~ClassificationModel (  )

Member Function Documentation

void BALL::QSAR::ClassificationModel::equalSpaceDiscretization ( uint  bins,
BALL::Matrix< double > &  discretization_information
) [protected]

discretizes each feature in such a way that each created bin has an equal range of values

void BALL::QSAR::ClassificationModel::equalSpaceDiscretizationTestData ( Vector< double > &  compound,
uint  bins,
const BALL::Matrix< double > &  discretization_information
) [protected]
std::vector<int> BALL::QSAR::ClassificationModel::getClassLabels (  )
virtual void BALL::QSAR::ClassificationModel::operator= ( ClassificationModel m  )  [virtual]
void BALL::QSAR::ClassificationModel::readClassInformationFromFile ( std::ifstream &  input,
int  no_classes
) [protected]
void BALL::QSAR::ClassificationModel::readLabels (  )  [protected]

read all different class labels from matrix Y into ClassificationModel.labels

void BALL::QSAR::ClassificationModel::saveClassInformationToFile ( std::ofstream &  out  )  [protected]

Friends And Related Function Documentation

friend class ClassificationValidation [friend]

Reimplemented from BALL::QSAR::Model.

Definition at line 126 of file classificationModel.h.


Member Data Documentation

void(ClassificationModel::* BALL::QSAR::ClassificationModel::discretizeFeatures)(uint bins, BALL::Matrix< double > &discretization_information) [protected]

Interface function-definition for discretization of features.
Thus, various functions that do the actual discretization can be created as members of ClassificationModel, allowing switching of the discretization technique by only (re-)setting this function-pointer.

Parameters:
bins the number of discrete values to be created for each features
discretization_information a BALL::Matrix<double> into which the information about the applied discretization should be saved (into one column per feature).
This BALL::Matrix<double> can later be used to discretize test data according to the discretization of the training data.

Definition at line 101 of file classificationModel.h.

void(ClassificationModel::* BALL::QSAR::ClassificationModel::discretizeTestDataFeatures)(Vector< double > &compound, uint bins, const BALL::Matrix< double > &discretization_information) [protected]

Discretizes test data according to the given discretization of the training data.

Parameters:
discretization_information the discretization according to which the current descriptor_matrix should be discretized.

Definition at line 105 of file classificationModel.h.

std::vector<int> BALL::QSAR::ClassificationModel::labels_ [protected]

labels for the different classes

Definition at line 123 of file classificationModel.h.

the number of substances in each class of the training data

Definition at line 81 of file classificationModel.h.

a ClassificationValidation object, that is used to validate this model and that will contain the results of the validations

Definition at line 66 of file classificationModel.h.
