BALL::TranslationProcessor Class Reference
[Geometric property processors.]

#include <BALL/STRUCTURE/geometricTransformations.h>

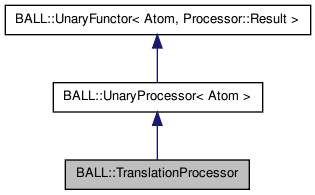

Inheritance diagram for BALL::TranslationProcessor:

[legend]

List of all members.

Public Member Functions
	TranslationProcessor ()
	TranslationProcessor (const Vector3 &translation)
void	setTranslation (const Vector3 &translation)
const Vector3 &	getTranslation () const
virtual Processor::Result	operator() (Atom &atom)
	Applicator method.
Private Attributes
Vector3	translation_

---

Detailed Description

Translation processor. This processor executes a translation on each atom of a given Composite object. The translation may be given in the constructor, or by calling setTranslation. Applying the processor to a given Composite object will add the given translation vector to the coordinates of each Atom object (and derived classes).

Definition at line 41 of file geometricTransformations.h.

---

Constructor & Destructor Documentation

BALL::TranslationProcessor::TranslationProcessor

(

)

Default constructor. The translation applicator object is initialized and the transformation is set to (0, 0, 0).

BALL::TranslationProcessor::TranslationProcessor

(

const Vector3 &

translation

)

Constructor. Creates a new instance of a TranslationProcessor and sets the translation vector.

Parameters:

translation

the new translation vector

---

Member Function Documentation

const Vector3& BALL::TranslationProcessor::getTranslation

(

)

const

Returns the translation vector.

Returns:

the current translation vector

virtual Processor::Result BALL::TranslationProcessor::operator()

(

Atom &

atom

)

[virtual]

Applicator method.

Reimplemented from BALL::UnaryProcessor< Atom >.

void BALL::TranslationProcessor::setTranslation

(

const Vector3 &

translation

)

Sets a new translation.

Parameters:

translation

the new translation vector

---

Member Data Documentation

Vector3 BALL::TranslationProcessor::translation_ [private]

Definition at line 75 of file geometricTransformations.h.
