BALL::VIEW::DisplayProperties Class Reference
[QT Dialogs]

#include <BALL/VIEW/DIALOGS/displayProperties.h>

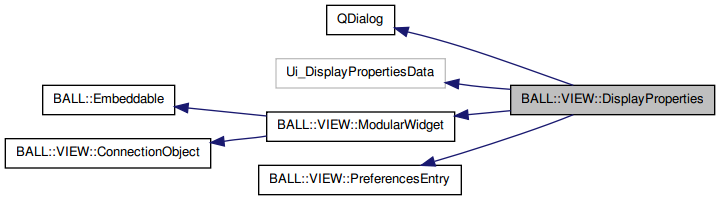

Inheritance diagram for BALL::VIEW::DisplayProperties:

Public Slots
Public slots

void	show ()
void	selectModel (int index)
void	selectMode (int index)
void	selectColoringMethod (int index)
void	setSurfaceDrawingPrecision (float value)
void	setDrawingPrecision (int value)
void	setTransparency (int value)
void	setCustomColor (const ColorRGBA &color)
virtual void	apply ()
void	editSelectionColor (QColor color)
void	coloringOptionsPressed ()
void	modelOptionsPressed ()
void	precisionBoxChanged (int index)
void	transparencySliderChanged ()
void	precisionSliderChanged ()
void	coloringUpdatesChanged ()
void	modelUpdatesChanged ()
Public Member Functions
Constructors and Destructors

	DisplayProperties (QWidget parent=NULL, const char name="DisplayProperties")
	DisplayProperties (const DisplayProperties &dp)
	Copy constructor just implemented for Python Interface, dont use it!
virtual	~DisplayProperties ()
Accessors: inspectors and mutators

virtual void	onNotify (Message *message)


virtual void	initializeWidget (MainControl &main_control)
virtual void	initializePreferencesTab (Preferences &preferences)
	Insert the ModelSettingsDialog and the ColoringSettingsDialog into the Preferences.
virtual void	finalizePreferencesTab (Preferences &preferences)
	Remove the ModelSettingsDialog and the ColoringSettingsDialog from the Preferences.
void	applyPreferences ()
virtual void	checkMenu (MainControl &main_control)
void	createRepresentationMode ()
	Switch to the mode, that a new Representation will be created.
void	modifyRepresentationMode (Representation *rep)
	Switch to the mode, that an existing Representation will be modified.
bool	getSettingsFromString (const String &data)
	Settings from String.
void	createRepresentation (String data_string, const vector< const Composite * > &new_systems)
void	enableCreationForNewMolecules (bool state)
	Set if Representations are automaticaly created for new Molecules.
Representation *	getRepresentation ()
	Get the Representation on which DisplayProperties is working on.
virtual Representation *	createRepresentation (const std::list< Composite * > &composites, bool hidden=false)
void	setModelSettingsDialog (ModelSettingsDialog *dialog)
void	setColoringSettingsDialog (ColoringSettingsDialog *dialog)
Protected Member Functions
void	checkDrawingPrecision_ ()
virtual void	getAdvancedModelOptions_ ()
virtual void	getAdvancedColoringOptions_ ()
virtual void	applyModelSettings_ (Representation &rep)
virtual void	applyColoringSettings_ (Representation &rep)
void	applyTo_ (Representation *rep)
Protected Attributes
ModelSettingsDialog *	model_settings_
ColoringSettingsDialog *	coloring_settings_
Preferences *	preferences_
QAction *	id_
QPushButton *	create_button_
Representation *	rep_
ColorRGBA	custom_color_
bool	advanced_options_modified_
bool	create_representations_for_new_molecules_
bool	changed_selection_color_
const ModelInformation *	model_information_

Detailed Description

Dialog for creating and changing representations for a selection of molecular objects. It can create a new Representation for a selection of Composite 's from the MolecularControl. If a Representation is selected in the GeometricControl, it can be modified with this dialog. With the help of various combo boxes it is possible to customize the look of the graphical visualization (the model, the drawing precision, the drawing mode, the coloring method and the custom color). For information about the drawing precision see Representation.
If this dialog is used, it should be created with MainControl as parent.
If you want to add a new coloring method or type of Representation, have a look at VIEW/KERNEL/common.h.

Definition at line 54 of file displayProperties.h.

Constructor & Destructor Documentation

BALL::VIEW::DisplayProperties::DisplayProperties	(	QWidget *	parent = `NULL`,
		const char *	name = `"DisplayProperties"`
	)

Default Constructor. Calls ModularWidget::registerWidget.

BALL::VIEW::DisplayProperties::DisplayProperties ( const DisplayProperties & dp )

Copy constructor just implemented for Python Interface, dont use it!

virtual BALL::VIEW::DisplayProperties::~DisplayProperties ( ) [virtual]

Destructor

Member Function Documentation

virtual void BALL::VIEW::DisplayProperties::apply ( ) [virtual, slot]

Indicates the apply button was pressed. Applies the selected model with its selected properties to the selected Composite objects or modifies an existing Representation. A SceneMessage will be sent to inform the Scene. A RepresentationMessage notifies the GeometricControl.

virtual void BALL::VIEW::DisplayProperties::applyColoringSettings_ ( Representation & rep ) [protected, virtual]

virtual void BALL::VIEW::DisplayProperties::applyModelSettings_ ( Representation & rep ) [protected, virtual]

void BALL::VIEW::DisplayProperties::applyPreferences ( ) [virtual]

Apply the preferences of the specific tab. In this method the widget can extract any changed values from its preferences tab (if required). This method is called automatically by the applyPreferencesTab from the MainControl object if the apply button in the Preferences dialog is pressed.

Parameters:

preferences

the Preferences dialog of the MainControl

See also:: initializePreferencesTab; finalizePreferencesTab; applyPreferencesTab

Reimplemented from BALL::VIEW::ModularWidget.

void BALL::VIEW::DisplayProperties::applyTo_ ( Representation * rep ) [protected]

void BALL::VIEW::DisplayProperties::checkDrawingPrecision_ ( ) [protected]

virtual void BALL::VIEW::DisplayProperties::checkMenu ( MainControl & main_control ) [virtual]

Menu checking method. This method is called by MainControl::checkMenus before a popup menu is shown. The menu entry Display Properties will be checked if this dialog is visible.

Parameters:

main_control

the MainControl object whose menus should be checked

Reimplemented from BALL::VIEW::ModularWidget.

void BALL::VIEW::DisplayProperties::coloringOptionsPressed ( ) [slot]

void BALL::VIEW::DisplayProperties::coloringUpdatesChanged ( ) [slot]

virtual Representation* BALL::VIEW::DisplayProperties::createRepresentation	(	const std::list< Composite * > &	composites,
		bool	hidden = `false`
	)			`[virtual]`

void BALL::VIEW::DisplayProperties::createRepresentation	(	String	data_string,
		const vector< const Composite * > &	new_systems
	)

void BALL::VIEW::DisplayProperties::createRepresentationMode ( )

Switch to the mode, that a new Representation will be created.

void BALL::VIEW::DisplayProperties::editSelectionColor ( QColor color ) [slot]

Opens the color dialog for the color of selected items.

See also:: BALL_SELECTED_COLOR

void BALL::VIEW::DisplayProperties::enableCreationForNewMolecules ( bool state ) [inline]

Set if Representations are automaticaly created for new Molecules.

Definition at line 142 of file displayProperties.h.

virtual void BALL::VIEW::DisplayProperties::finalizePreferencesTab ( Preferences & preferences ) [virtual]

Remove the ModelSettingsDialog and the ColoringSettingsDialog from the Preferences.

Reimplemented from BALL::VIEW::ModularWidget.

virtual void BALL::VIEW::DisplayProperties::getAdvancedColoringOptions_ ( ) [protected, virtual]

virtual void BALL::VIEW::DisplayProperties::getAdvancedModelOptions_ ( ) [protected, virtual]

Representation* BALL::VIEW::DisplayProperties::getRepresentation ( ) [inline]

Get the Representation on which DisplayProperties is working on.

Definition at line 146 of file displayProperties.h.

bool BALL::VIEW::DisplayProperties::getSettingsFromString ( const String & data )

Settings from String.

virtual void BALL::VIEW::DisplayProperties::initializePreferencesTab ( Preferences & preferences ) [virtual]

Insert the ModelSettingsDialog and the ColoringSettingsDialog into the Preferences.

Reimplemented from BALL::VIEW::ModularWidget.

virtual void BALL::VIEW::DisplayProperties::initializeWidget ( MainControl & main_control ) [virtual]

ModularWidget methods Initialize the popup menu Display with the entry Display Properties, which opens the dialog. This method is called automatically immediately before the main application is started by MainControl::show()

Parameters:

main_control

the MainControl object to be initialized

Reimplemented from BALL::VIEW::ModularWidget.

void BALL::VIEW::DisplayProperties::modelOptionsPressed ( ) [slot]

void BALL::VIEW::DisplayProperties::modelUpdatesChanged ( ) [slot]

void BALL::VIEW::DisplayProperties::modifyRepresentationMode ( Representation * rep )

Switch to the mode, that an existing Representation will be modified.

virtual void BALL::VIEW::DisplayProperties::onNotify ( Message * message ) [virtual]

Message handling method. Handles messages sent by other registered ConnectionObject objects. If a CompositeMessage with type NEW_MOLECULE is catched, the chosen graphical visualization will be applied to the Composite object and the follwing Message objects will be sent through the ConnectionObject tree:

CompositeMessage with type CENTER_CAMERA
RepresentationMessage with type NEW

Parameters:

message the pointer to the message that should be processed

Reimplemented from BALL::VIEW::ConnectionObject.

void BALL::VIEW::DisplayProperties::precisionBoxChanged ( int index ) [slot]

void BALL::VIEW::DisplayProperties::precisionSliderChanged ( ) [slot]

void BALL::VIEW::DisplayProperties::selectColoringMethod ( int index ) [slot]

Changes the coloring method. This slot is connected to the coloring method combo box and will be automatically called if the content of this combo box is changed.

Parameters:

index

the position of the entry in the combobox

void BALL::VIEW::DisplayProperties::selectMode ( int index ) [slot]

Changes the drawing mode. This slot is connected to the mode combo box and will be automatically called if the content of this combo box is changed.

Parameters:

index

the position of the entry in the combobox

void BALL::VIEW::DisplayProperties::selectModel ( int index ) [slot]

Changes the model. This slot is connected to the model combo box and will be automatically called if the content of this combo box is changed.

Parameters:

index
