BALL::VIEW::MolecularControl Class Reference
[Modular Widgets]

#include <BALL/VIEW/WIDGETS/molecularControl.h>

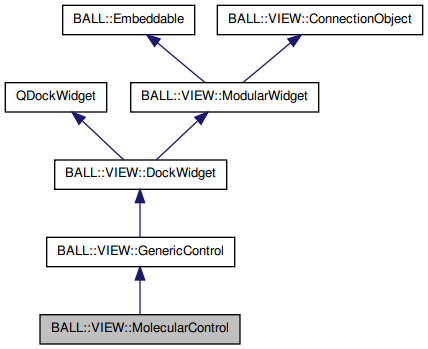

Inheritance diagram for BALL::VIEW::MolecularControl:

Classes
class	MyTreeWidgetItem
Public Slots
Public slots

void	createRepresentation ()
	Create a Representation with the DisplayProperties Dialog.
void	compositeProperties ()
	Composite properties dialog requested.
void	bondProperties ()
	Bond properties dialog requested.
void	checkResidue ()
void	buildBonds ()
void	centerCamera ()
void	countItems ()
	Count the molecular items and print the info.
void	showFilename ()
	Show the filename from which the composite was loaded.
virtual void	updateSelection ()
void	highlightSelection ()
void	highlight (const std::list< Composite * > &composite)
void	cut ()
void	copy ()
void	paste ()
void	clearClipboard ()
void	select ()
void	deselect ()
void	moveItems ()
	Move a composite.
void	collapseAll ()
	Collapse all QListViewItem.
void	expandAll ()
	Expand all QListViewItem.
Size	applySelector ()
void	showSelectorHelp ()
	Show a help dialog for the Selector.
virtual void	deleteCurrentItems ()
	Overloaded from GenericControl, calls cut.
virtual void	clearSelector ()
	Connected to the clear selection button.
void	switchShowSecondaryStructure ()
void	showAtomOverview ()
void	showAtomOverviewForSelection ()
void	showDistance ()
void	showAngle ()
Public Member Functions
Constructors and Destructor

	MolecularControl (QWidget parent=0, const char name=0)
virtual	~MolecularControl ()
Accessors: inspectors and mutators

virtual void	checkMenu (VIEW::MainControl &main_control)
void	addComposite (Composite &composite, String given_name="")
Size	removeComposite (Composite &composite)
const std::list< Composite * > &	getSelection () const
virtual void	onNotify (Message *message)
virtual void	updateContextMenu (Composite &composite)
virtual void	initializeWidget (MainControl &main_control)
Size	applySelector (const String &expression)
void	writePreferences (INIFile &inifile)
void	fetchPreferences (INIFile &inifile)
void	showDistance (Atom a1, Atom a2)
void	showAngle (Atom a1, Atom a2, Atom a3, Atom a4=0)
Protected Attributes
std::list< Composite * >	selected_
std::list< Composite * >	copy_list_
MolecularInformation	information_
QComboBox *	selector_edit_
QComboBox *	smarts_edit_
QMenu	context_menu_
QMenu	model_menu_
QMenu	edit_menu_
QMenu	color_menu_ [MODEL_LABEL-MODEL_LINES]
Composite *	context_composite_
QTreeWidgetItem *	context_item_
ModelType	selected_model_
ColoringMethod	selected_coloring_method_
std::map< Composite , MyTreeWidgetItem >	composite_to_item_
bool	was_delete_
Size	nr_items_removed_
bool	show_ss_
QAction *	center_camera_action_
QAction *	composite_properties_action_
QAction *	bond_propertes_action_
QAction *	select_action_
QAction *	deselect_action_
QAction *	count_items_action_
QAction *	atom_overview_
QAction *	atom_overview_selection_
QAction *	angle_action_
QAction *	distance_action_
QAction *	paste_action_
bool	ignore_messages_
Menu entries ids

QAction *	cut_id_
QAction *	copy_id_
QAction *	paste_id_
QAction *	delete_id_
QAction *	clipboard_id_
QAction *	select_id_
QAction *	deselect_id_
QAction *	show_ss_id_
Private Types
enum	MolecularMenuEntries { CREATE_REPRESENTATION, OBJECT__MOVE, SELECT, DESELECT, EDIT_MENU, CUT, COPY, DELETE_ENTRY, PASTE, CAMERA__CENTER, COMPOSITE__PROPERTIES, COUNT__ITEMS, BOND__PROPERTIES, COLLAPSE_ALL, EXPAND_ALL }
Friends
class	BondProperties
Protected members

void	showGuestContextMenu (const QPoint &pos)
void	activatedItem_ (QAction *action)
void	createRepresentation_ ()
void	onItemClicked (QTreeWidgetItem *item, int)
void	buildContextMenu_ ()
void	setSelection_ (bool open, bool force=false)
virtual MolecularInformation &	getInformationVisitor_ ()
virtual void	recurseGeneration_ (QTreeWidgetItem *item, Composite &composite)
virtual bool	reactToMessages_ (Message *message)
QTreeWidgetItem *	generateListViewItem_ (QTreeWidgetItem parent, Composite &composite, QString default_name=0)
bool	pasteAllowedFor_ (Composite &composite)
void	removeRecursive_ (QTreeWidgetItem *item)
	MolecularControl (const MolecularControl &mc)
std::list< QTreeWidgetItem * >	getAllItems_ ()
void	enableUpdates_ (bool state)
void	newSelection_ (std::list< Composite * > &sel, bool selected)
bool	allowPaste_ ()

Detailed Description

MolecularControl is a widget to display the molecular structure of Composite objects. This class is derived from the class GenericControl and extends it for showing and modifiying molecular structures. The methods checkMenu() and buildContextMenu() are overridden for performing special molecular tasks. MolecularControl has also a QLineEdit to select Composites by BALL expressions. For further informations on this topic have a look at the class Selector.

Definition at line 45 of file molecularControl.h.

Member Enumeration Documentation

enum BALL::VIEW::MolecularControl::MolecularMenuEntries [private]

Enumerator:

CREATE_REPRESENTATION	create a new Representation
OBJECT__MOVE
SELECT
DESELECT
EDIT_MENU
CUT
COPY
DELETE_ENTRY
PASTE
CAMERA__CENTER	Center camera on one Composite (done in MolecularProperites).
COMPOSITE__PROPERTIES	Show a dialog with the atom properties.
COUNT__ITEMS
BOND__PROPERTIES	Show a dialog with the bond properties.
COLLAPSE_ALL	Collapse all QListViewItem.
EXPAND_ALL	Expand all QListViewItem.

Definition at line 64 of file molecularControl.h.

Constructor & Destructor Documentation

BALL::VIEW::MolecularControl::MolecularControl	(	QWidget *	parent = `0`,
		const char *	name = `0`
	)

Default Constructor.

Parameters:

	parent	the parent widget
	name	the name of this widget

virtual BALL::VIEW::MolecularControl::~MolecularControl ( ) [virtual]

Destructor.

BALL::VIEW::MolecularControl::MolecularControl ( const MolecularControl & mc ) [protected]

Member Function Documentation

void BALL::VIEW::MolecularControl::activatedItem_ ( QAction * action ) [protected, slot]

void BALL::VIEW::MolecularControl::addComposite	(	Composite &	composite,
		String	given_name = `""`
	)

Insert a Composite object into this Control. If name == "" than the Information visitor is used for determining a name for the Composite.

: Calls generateListViewItem_() for the Composite.

Parameters:

composite

a pointer to the Composite to be inserted into the Control

bool BALL::VIEW::MolecularControl::allowPaste_ ( ) [protected]

Size BALL::VIEW::MolecularControl::applySelector ( ) [slot]

Apply the BALL expression from the QLineEdit

Returns:: Size number of selected atoms

Size BALL::VIEW::MolecularControl::applySelector ( const String & expression )

Apply a given BALL expression

Returns:: Size number of selected atoms

void BALL::VIEW::MolecularControl::bondProperties ( ) [slot]

Bond properties dialog requested.

void BALL::VIEW::MolecularControl::buildBonds ( ) [slot]

Build bonds

void BALL::VIEW::MolecularControl::buildContextMenu_ ( ) [protected]

void BALL::VIEW::MolecularControl::centerCamera ( ) [slot]

Center the camera on a composite.

virtual void BALL::VIEW::MolecularControl::checkMenu ( VIEW::MainControl & main_control ) [virtual]

Menu checking method. This method is called by MainControl::checkMenus before a popup menu is shown. The copy menu entry is only enabled for selected System objects.

Parameters:

main_control

the MainControl object whose menus should be checked

See also:: Control::checkMenu

Reimplemented from BALL::VIEW::ModularWidget.

void BALL::VIEW::MolecularControl::checkResidue ( ) [slot]

Check residues

void BALL::VIEW::MolecularControl::clearClipboard ( ) [slot]

Clear the copied Composite objects from the internal copy list.

virtual void BALL::VIEW::MolecularControl::clearSelector ( ) [virtual, slot]

Connected to the clear selection button.

void BALL::VIEW::MolecularControl::collapseAll ( ) [slot]

Collapse all QListViewItem.

void BALL::VIEW::MolecularControl::compositeProperties ( ) [slot]

Composite properties dialog requested.

void BALL::VIEW::MolecularControl::copy ( ) [slot]

Copy the selected Composite objects into an internal copy list. If there are already Composite objects in the copy list they will be deleted.

void BALL::VIEW::MolecularControl::countItems ( ) [slot]

Count the molecular items and print the info.

void BALL::VIEW::MolecularControl::createRepresentation ( ) [slot]

Create a Representation with the DisplayProperties Dialog.

void BALL::VIEW::MolecularControl::createRepresentation_ ( ) [protected, slot]

void BALL::VIEW::MolecularControl::cut ( ) [slot]

Cut the selected Composite objects and copy them into an internal copy list. If there are already Composite objects in the copy list they will be deleted. All Composite objects that are cutted are removed from the Control. Cuted systems are moved to the copy list. A RemovedCompositeMessage will be sent for each cutted object. After all selected objects are removed a SceneMessage will be sent to update the Scene.

virtual void BALL::VIEW::MolecularControl::deleteCurrentItems ( ) [virtual, slot]

Overloaded from GenericControl, calls cut.

Reimplemented from BALL::VIEW::GenericControl.

void BALL::VIEW::MolecularControl::deselect ( ) [slot]

Deselect

void BALL::VIEW::MolecularControl::enableUpdates_ ( bool state ) [protected]

void BALL::VIEW::MolecularControl::expandAll ( ) [slot]

Expand all QListViewItem.

void BALL::VIEW::MolecularControl::fetchPreferences ( INIFile & inifile ) [virtual]

Load settings from an INIFile

See also:: ModularWidget::fetchPreferences

Reimplemented from BALL::VIEW::DockWidget.

QTreeWidgetItem* BALL::VIEW::MolecularControl::generateListViewItem_	(	QTreeWidgetItem *	parent,
		Composite &	composite,
		QString *	default_name = `0`
	)			`[protected]`

Generate a new QTreeWidgetItem for the given Composite. If default_name == 0 than a new name is created using the Information visitor accessed with the method getInformationVisitor_(). If parent == 0 than the new QTreeWidgetItem is a root item. Otherwise a new QTreeWidgetItem for is created that will be inserted into given parent. All children of composite will be inserted recursivly into the newly created item by the method recurseGeneration_().

Parameters:

	parent	a QTreeWidgetItem into which a subtree of items will be inserted, or `0` if a new root item should be created
	composite	the Composite object whose subtree will be inserted into parent
	default_name	the name of the item

std::list<QTreeWidgetItem*> BALL::VIEW::MolecularControl::getAllItems_ ( ) [protected]

virtual MolecularInformation& BALL::VIEW::MolecularControl::getInformationVisitor_ ( ) [protected, virtual]

Access the MolecularInformation visitor. With the MolecularInformation, the names and type entries for the Items are generated. Override this method if another information visitor is needed. This method is used in the method generateListViewItem_() to retrieve certain information of the given Composite.

const std::list<Composite*>& BALL::VIEW::MolecularControl::getSelection ( ) const

Non-mutable inspection of the selection.

void BALL::VIEW::MolecularControl::highlight ( const std::list< Composite * > & composite ) [slot]

void BALL::VIEW::MolecularControl::highlightSelection ( ) [slot]

virtual void BALL::VIEW::MolecularControl::initializeWidget ( MainControl & main_control ) [virtual]

Initialize the menu entries:

cut
copy
paste
delete
clear clipboard
This method is called automatically immediately before the main application is started by MainControl::show.

Parameters:

main_control the MainControl object to be initialized with this ModularWidget

Reimplemented from BALL::VIEW::GenericControl.

void BALL::VIEW::MolecularControl::moveItems ( ) [slot]

Move a composite.

void BALL::VIEW::MolecularControl::newSelection_	(	std::list< Composite * > &	sel,
		bool	selected
	)			`[protected]`

void BALL::VIEW::MolecularControl::onItemClicked	(	QTreeWidgetItem *	item,
		int
	)			`[protected, virtual, slot]`

Reimplemented from BALL::VIEW::GenericControl.

virtual void BALL::VIEW::MolecularControl::onNotify ( Message * message ) [virtual]

Message handling. Overridden method from ConnectionObject to handle incoming messages.

: Calls reactToMessages_().

Parameters:

message

a pointer to a Message object

Reimplemented from BALL::VIEW::GenericControl.

void BALL::VIEW::MolecularControl::paste ( ) [slot]

Paste the copied Composite objects from the internal copy list into the Control. For each Composite in the copy list a NewCompositeMessage will be sent.

bool BALL::VIEW::MolecularControl::pasteAllowedFor_ ( Composite & composite ) [protected]

virtual bool BALL::VIEW::MolecularControl::reactToMessages_ ( Message * message ) [protected, virtual]

Message handling. Catch the Message objects and react accordingly to the different messages. Override this method if new messages should be catched.

: Note: If this method is overriden, call this method at the end of the new implementation to make sure the old messages are still catched properly.

Messages to be catched and the resulting reaction:

NewCompositeMessage - update always necessary
RemovedCompositeMessage - update necessary if already inserted
ChangedCompositeMessage - update necessary if Composite object has changed

Parameters:

message

a pointer to the Message object

Returns:: bool true if an update of the Control is necessary, false otherwise

See also:: onNotify

virtual void BALL::VIEW::MolecularControl::recurseGeneration_	(	QTreeWidgetItem *	item,
		Composite &	composite
	)			`[protected, virtual]`

Iterate over the children of the Composite and call for each the method generateListViewItem_().

Parameters:

	item	a pointer to a QTreeWidgetItem to which all children of the Composite will be inserted
	composite	whose children will be inserted into `item`

Size BALL::VIEW::MolecularControl::removeComposite ( Composite & composite )

Recursive removal of a Composite from the Control.

void BALL::VIEW::MolecularControl::removeRecursive_ ( QTreeWidgetItem * item ) [inline, protected]

void BALL::VIEW::MolecularControl::select ( ) [slot]

Select

void BALL::VIEW::MolecularControl::setSelection_	(	bool	open,
		bool	force = `false`
	)			`[protected]`

Set the selection of the checkboxes and the opening of the tree according to the selection in the MainControl.

Parameters:

	open	true means, that the item tree is opend and closed according to the changes
	force	true means, that the item tree is opend and closed also if more than 50 items are selected.

void BALL::VIEW::MolecularControl::showAngle ( ) [slot]

void BALL::VIEW::MolecularControl::showAngle	(	Atom *	a1,
		Atom *	a2,
		Atom *	a3,
		Atom *	a4 = `0`
	)

void BALL::VIEW::MolecularControl::showAtomOverview ( ) [slot]

void BALL::VIEW::MolecularControl::showAtomOverviewForSelection ( ) [slot]

void BALL::VIEW::MolecularControl::showDistance ( ) [slot]

void BALL::VIEW::MolecularControl::showDistance	(	Atom *	a1,
		Atom *	a2
	)

void BALL::VIEW::MolecularControl::showFilename ( ) [slot]

Show the filename from which the composite was loaded.

void BALL::VIEW::MolecularControl::showGuestContextMenu ( const QPoint & pos ) [protected, virtual, slot]

Reimplemented from BALL::VIEW::DockWidget.

void BALL::VIEW::MolecularControl::showSelectorHelp ( ) [slot]

Show a help dialog for the Selector.

void BALL::VIEW::MolecularControl::switchShowSecondaryStructure ( ) [slot]

virtual void BALL::VIEW::MolecularControl::updateContextMenu ( Composite & composite ) [virtual]

Build a context menu for a Composite. If the Composite has certain properties a context menu is created. This method only creates the necessary interface for derived classes. Override this method for creating other context menu entries, but call Control::buildContextMenu at the end of your method to create the standard entries. Calls insertContextMenuEntry() for each context menu entry that will be created.

Parameters:

composite

the Composite object for that a context menu should be created
